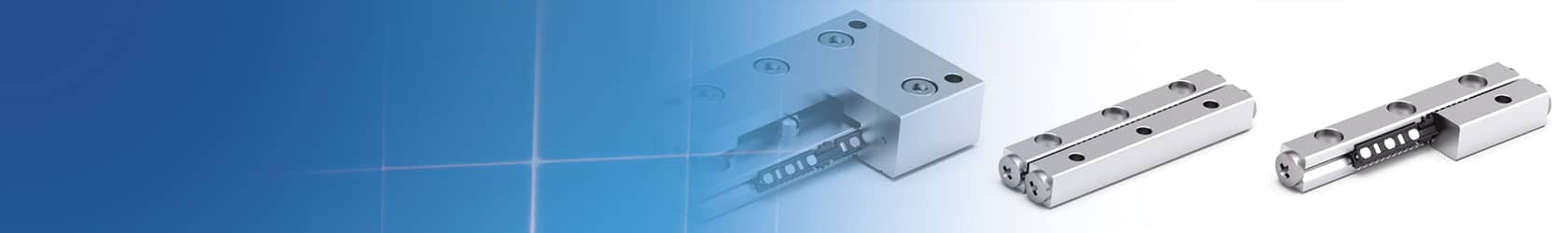

Cross roller linear guides
Learn more about cpc’s patent-pending fully enclosed cross roller cage design with best in class load capacity.
Visuals
Features & benefits
- High density arrangement of rollers, high load capacity
More rollers within the same roller cage length with increased load capacity. - Integrated through-type oil reservoir design
Grease storage reservoirs between the rollers ensuring even lubrication of the rollers and extending the relubrication interval. - Patent for Anti-Creep design
The cpc patented anti-creep design prevents the rollers from shifting or sliding during operation. - High contact length
The contact length between the rolling elements and the rail raceway is longer allowing for a higher rated load capacity.
Technical specifications
- Models: CR, CRT, CRTU
- Frame size: 6, 12
- Execution types: standard
- Max stroke mm: 20 – 110
- H | Total height (rail + block): 12 mm
- W | Block width: 12, 30 mm
- L | Block length: 30 – 180 mm
- No. of rollers: 6 – 48
Datasheet & 3D step
3D drawings on request. Please send us your enquiry by clicking the button below.
Linear guide lifetime calculation
Our self-developed Loading, Lifetime & Rigidity Analysis Software (LLRAS) is an advanced tool, designed to enhance the predictability and accuracy of service life estimations for linear guides.
Calculate your linear guide lifetime with cpc’s LLRAS tool
This sophisticated software precisely calculates the optimal deformation and rotation responses of linear guides under load, allowing for accurate determination of equivalent loads. Representing a significant advancement in the maintenance and design of linear guides, LLRAS sets a new standard in ensuring the reliability and efficiency of these essential components.
