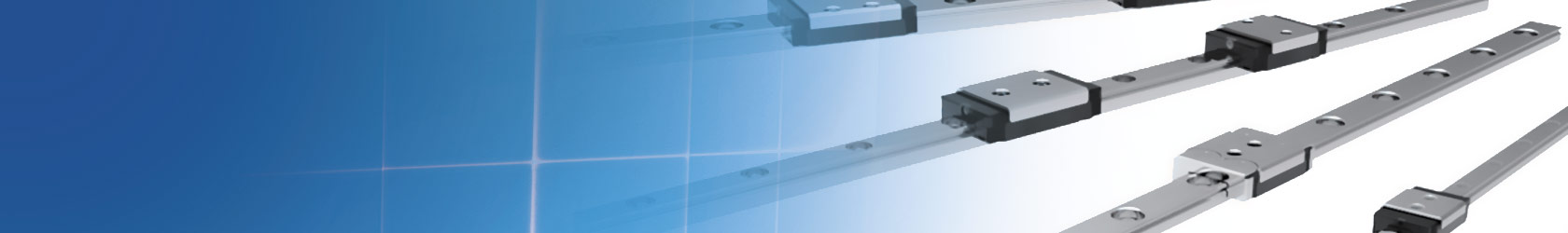

Miniature linear guides

Enquire price & availability

Mini linear guides

Discover precision in compact engineering with cpc’s (wide) mini linear guide series. From cost-effective models to high-load capabilities, these miniature guides redefine precision in a compact form, offering quality, innovation, and versatility for a wide range of applications.

These miniature guides, ranging from 2 to 15mm, are ideal for compact designs, providing high-load functions and ensuring smooth and accurate motion. They find applications in various industries, including electronics, medical devices, and automation, where precision and versatility are paramount.

cpc offers a diverse range of (wide) mini linear guide series to cater to specific application needs. These include MR/VC, U, SU, ZU, UE, SUE, ZUE, EE, EZ, EU, and UZ series, each tailored with unique features to address various requirements in precision, space-saving, dust proofing and lubrication efficiency.

Visuals & videos

Features & benefits

  • Patented silent roller chain
    Enhance smooth operation by reducing high-frequency noise with a spacer for continuous lubrication.
  • LRR model with lower system height
    The compact design with a lower center of gravity is ideal for torque-sensitive applications.
  • MXL super long block model
    Achieve ultra-high rigidity and load capacity, designed for precision machine tools.
  • High-rigidity stainless steel reinforcement plate
    The L-shaped design with screws ensures robust protection and rigidity, enhancing overall performance.
  • Patented built-in lubrication storage
    Maintain excellent long-term lubrication through PU lubrication storage, with no added length and direct roller contact.

Technical specifications

  • Models: MR
  • Frame size: 02 – 15
  • Execution types: standard (M) & wide (W)
  • Block length: standard (N), long (L)
  • H | Total height (rail + block): 3,2 – 16 mm
  • W | Block width: 6 – 60 mm
  • L | Block length: 11,8 – 76,7 mm
  • CISO 100km(KN): 158 – 6.725
  • C0(KN): 349 – 12.580

Datasheet & 3D step

Linear guide lifetime calculation

Our self-developed Loading, Lifetime & Rigidity Analysis Software (LLRAS) is an advanced tool, designed to enhance the predictability and accuracy of service life estimations for linear guides.

Calculate your linear guide lifetime with cpc’s LLRAS tool

This sophisticated software precisely calculates the optimal deformation and rotation responses of linear guides under load, allowing for accurate determination of equivalent loads. Representing a significant advancement in the maintenance and design of linear guides, LLRAS sets a new standard in ensuring the reliability and efficiency of these essential components.

Product details & enquiry

Use the search filter below to narrow your search and get more relevant results. In the results lists, click on the product row to select it and add the SKU to your enquiry.

Search filter

View dimensions View dimensions

H = total height, W = block width, L = block length, C/C0 = dynamic load

Products

H(mm) W(mm) L(mm) CDYN 100km (kN) C0 (kN)
MR02WL* 4 10 17 310 625 MR 02 W L Click to enquireEnquire
MR03WL 4 12 20 370 800 MR 03 W L Click to enquireEnquire
MR03WN 4 12 15 280 530 MR 03 W N Click to enquireEnquire
MR05ML 6 12 19 470 900 MR 05 M L Click to enquireEnquire
MR05MN 6 12 16 335 550 MR 05 M N Click to enquireEnquire
MR05WL 6 17 27 615 1315 MR 05 W L Click to enquireEnquire
MR05WLC 6 17 27 615 1315 MR 05 W LC Click to enquireEnquire
MR05WN 6 17 21 475 900 MR 05 W N Click to enquireEnquire
MR05WNC 6 17 21 475 900 MR 05 W NC Click to enquireEnquire
MR07ML 8 17 31 1310 2440 MR 07 M L Click to enquireEnquire
MR07MN 8 17 24 890 1440 MR 07 M N Click to enquireEnquire
MR07WL 9 25 40 1570 3140 MR 07 W L Click to enquireEnquire
MR07WN 9 25 31 1180 2095 MR 07 W N Click to enquireEnquire
MR09ML 10 20 41 2135 3880 MR 09 M L Click to enquireEnquire
MR09MN 10 20 30 1570 2495 MR 09 M N Click to enquireEnquire
MR09WL 12 30 50 2550 4990 MR 09 W L Click to enquireEnquire
MR09WN 12 30 39 2030 3605 MR 09 W N Click to enquireEnquire
MR12ML 13 27 47 3240 5630 MR 12 M L Click to enquireEnquire
MR12MN 13 27 35 2308 3465 MR 12 M N Click to enquireEnquire
MR12WL 14 40 60 4070 7800 MR 12 W L Click to enquireEnquire
MR12WN 14 40 44 3065 5200 MR 12 W N Click to enquireEnquire
MR15ML 16 32 60 5350 9080 MR 15 M L Click to enquireEnquire
MR15MN 16 32 43 3810 5590 MR 15 M N Click to enquireEnquire
MR15WL 16 60 74 6725 12580 MR 15 W L Click to enquireEnquire
MR15WN 16 60 55 5065 8385 MR 15 W N Click to enquireEnquire
MRU03ML 4 8 16 295 575 MR 03 M L Click to enquireEnquire
MRU03MN 4 8 11 190 310 MR 03 M N Click to enquireEnquire
